ZERUST® Zerion™ FVS

Product DESCRIPTION

ZERUST^® Zerion^™ FVS is a cutting-edge corrosion inhibitor designed to protect ferrous metals in aggressive environments with water, moisture, or water ingress. It offers best-in-class dual-action protection through:

Vapor Corrosion Inhibitors (VCIs): Shielding air space voids, exposed metal surfaces, welded joints, crevices, and coating holidays.
Soluble Corrosion Inhibitors (SCIs): Neutralizing corrosion caused by moisture or water ingress.

This powerful combination penetrates gaps and interstices in enclosed voids, delivering comprehensive protection.

TYPICAL Applications

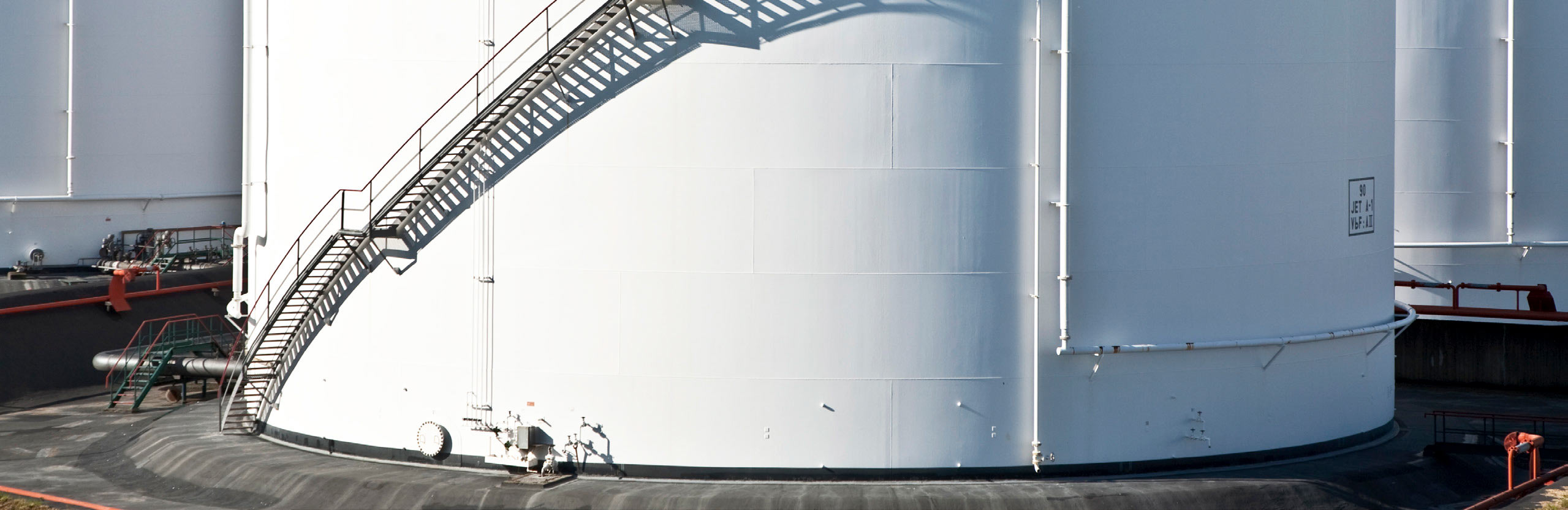

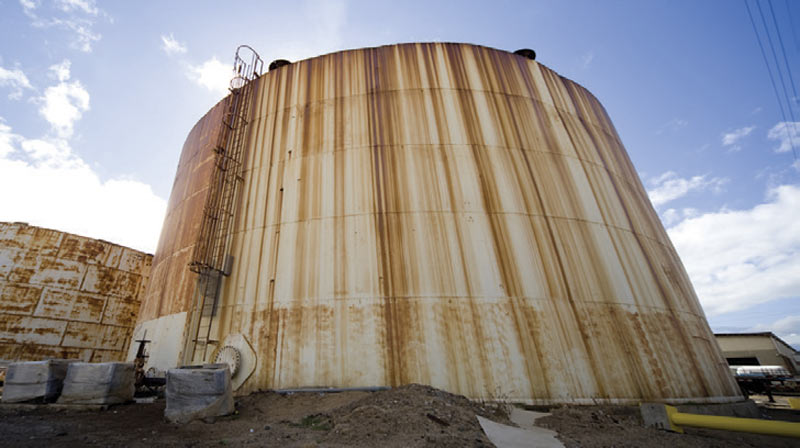

• Aboveground Storage Tank Soil Side Bottoms: Diluted or powdered ZERUST^® Zerion^™ FVS protects tank bottoms during construction, refurbishment, or on concrete pads. VCI Ring system is available for installations without liquid injection.
• Pipe Casing and Pipeline Preservation: Corrosion inhibitors and gels protect carrier pipelines using Soluble and Vapor Corrosion Inhibitors.
• Protection of Voids/Enclosures: Provides up to 2 years of protection^† for exposed steel in large voids or enclosures using solution or powder.

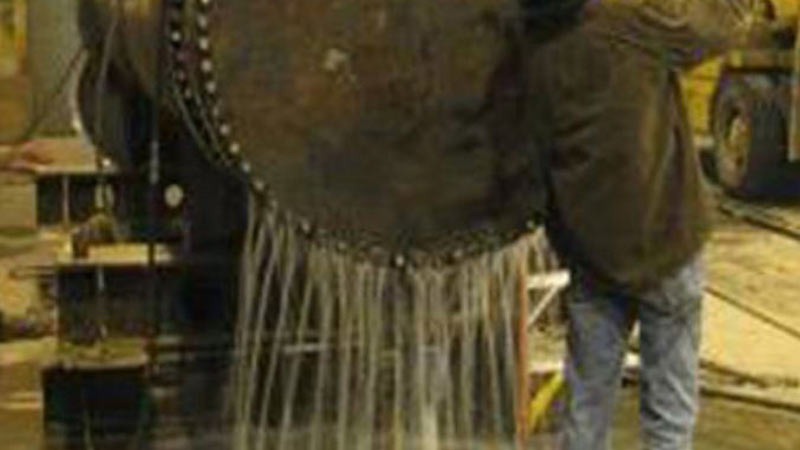

• Hydrostatic Testing: ZERUST^® Zerion^™ FVS protects steel surfaces, air pockets, and voids during testing; compatible with DI, RO, or low-chlorine water.
• Offshore Structure Preservation: Delivers long-term corrosion protection for offshore structures in harsh environments.
• Additional Applications: Effective for enclosure protection, hydrostatic testing of complex systems, and preserving critical infrastructure.

KEY ADVANTAGES

• Dual-Action Protection
• Comprehensive Coverage
• Versatile Application Methods
• Long-Term Protection
• Cost-Effective Solution
• Environmental Compatibility

Application Guidelines and Removal

• Mix ZERUST^® Zerion^™ FVS thoroughly with water until fully dissolved. The concentration depends on factors such as the duration of exposure, asset condition, and water quality.
• Apply the solution to the asset as specified in the Scope of Work. A ZERUST^® Field Engineer can be assigned to oversee the operation.
• Dispose of any unused solution and containers in accordance with local, regional, national, and international regulations.

Please contact a ZERUST^® representative for specific dosage, application equipment guidance and recommendations.

TYPICAL PROPERTIES

• Appearance: White powder

• Substrate: Ferrous

• pH: 9 - 9.5 (1% in water)

Typical values are not meant to be a specification.

AVAILABILITY

Contact a ZERUST^® representative for ordering information.

ZERUST^® Zerion^™ FVS

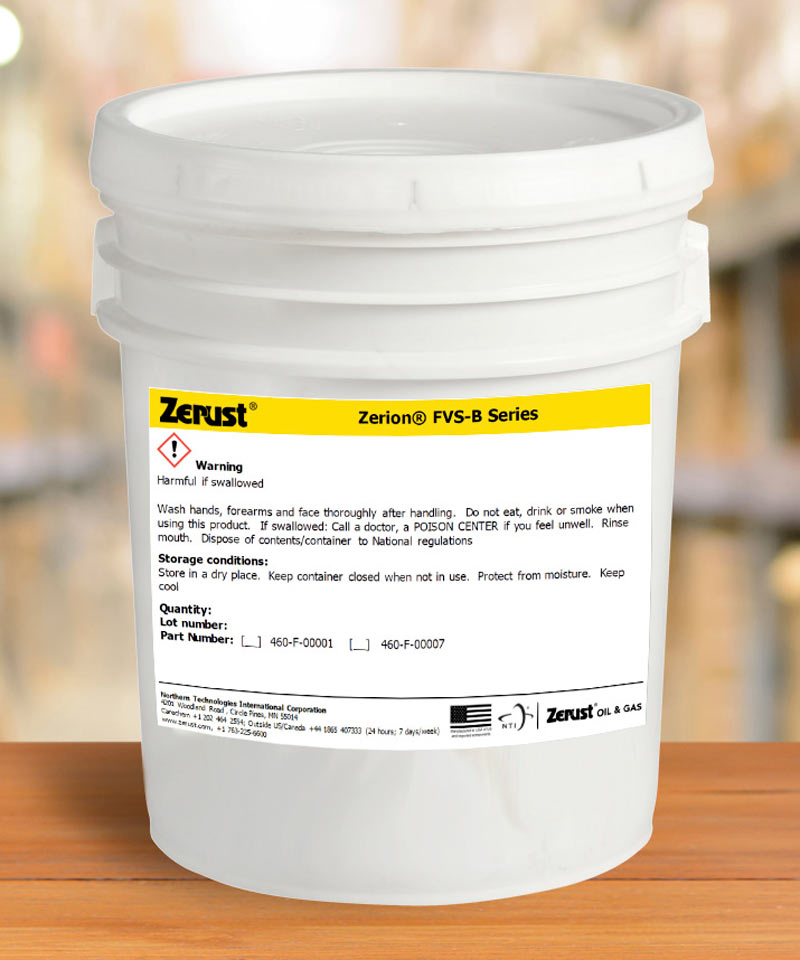

Product Number: 460-F-00001 (33lb (15kg) pail)
Product Number: 460-F-00001DR (55 gal, 340 lb (154.22 KG) drum)
Product Number: 460-F-00001TT (275 gal, 1,360 lb (616.89 KG) tote)

Application Guide: Dilute with water** to use as slurry. Mixing ration of 0.5% to 15% (w/v) depending on application.ZERUST® Zerion™ FVS-S2

ZERUST^® Zerion^™ FVS-S2
Number: 375-F-00204    (Sachet (10 sachets per box))

Application Guide: Place securely in the center of the void and ensure a tight seal. Provides protection for approximately 2–3 m³ of volume.*

ZERUST^® Zerion^™ FVS-S10

Product Number: 375-F-00200 (20mm (0.75in) dia. x 1m (8 each / pail))

Application Guide: Place in center of void and seal tightly. Provides approximately 3.1m3 volume* of protection.

ZERUST^® Zerion^™ FVS-S15

Product Number: 375-F-00202 (Sleeve Assembly - 20mm (0.75in) dia.x1.5m (1 assembly of 30 sleeves))

Application Guide: Designed for use with Inhibitor Delivery System solutions. Contact a ZERUST^® representative for details.

Product sold in US customary units. Metric units approximate.

For typical properties, availability, and more, download the brochure below.

Download Brochure
