Storage Tank Roof Protection
The Problem
Storage tanks containing sulfur-rich oils face aggressive internal corrosion, especially in the vapor space. This leads to:
-
Severe damage to internal surfaces and roof support structures.
-
Dangerous operating conditions due to pitting and crevice corrosion that create holes in tank tops.
-
Failure of internal coatings to protect hidden areas between roofs and support structures.
-
Costly operational downtime and frequent roof replacements, resulting in capital loss and safety risks.
The Solution
ZERUST® ReCAST-R™ offers an advanced solution to combat internal corrosion in aggressive operational environments. Roof-mounted dispensers release VCIs into the vapor space, creating a protective barrier that shields metal surfaces. Proven to handle diverse conditions, including product variations, temperature fluctuations, and tank designs, it integrates seamlessly with existing systems like scrubbers and nitrogen blankets.
How it Works:
-
VCIs are automatically dispersed into the vapor space
-
A protective barrier isolates metal surfaces from corrosive vapors
-
Effective across a wide range of tank designs, product types, and operating conditions
-
Compatible with nitrogen blankets, scrubbers, and vent systems

Product APPLICATIONS
-
ZERUST® ReCAST-R™ protects:
-
All metallic surfaces exposed to the vapor space
-
Sidewall sections above the product level and roof support structures
-
Both new and existing tanks - even if corrosion is already present
-
Operational tanks - without contaminating the stored product

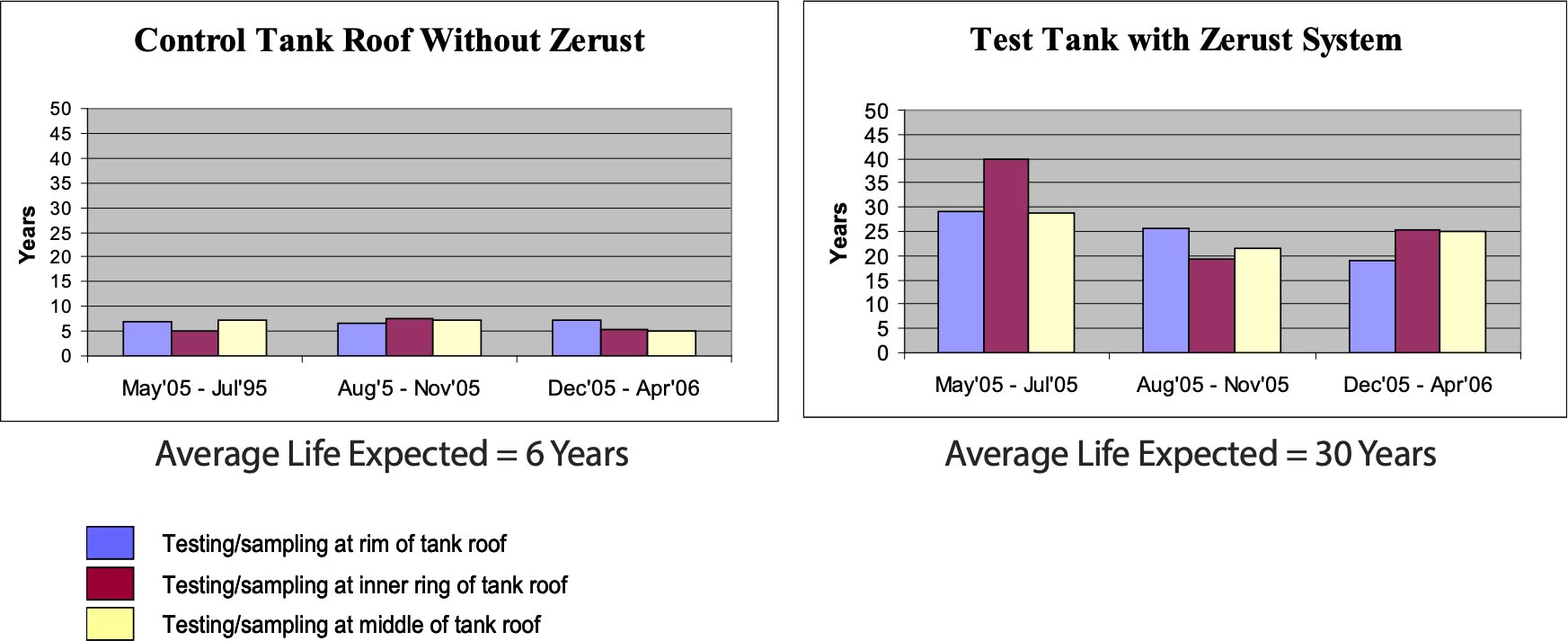

Solution Effectiveness

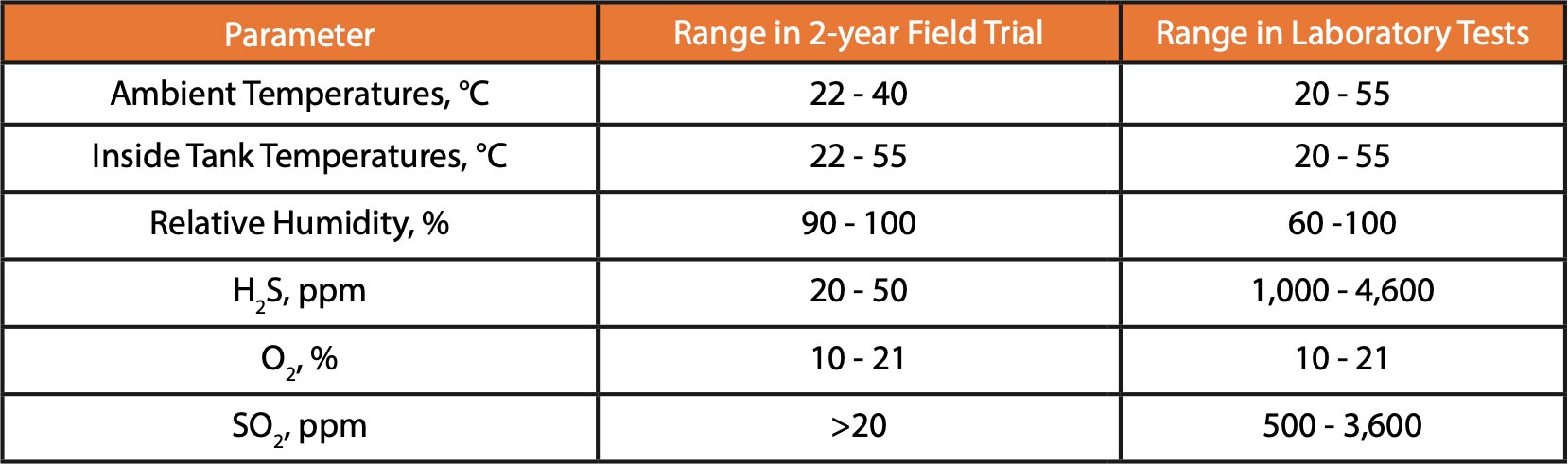

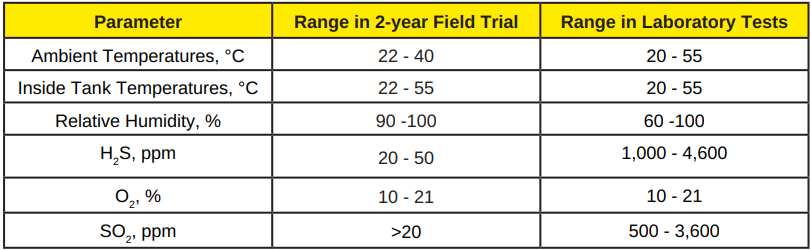

Operating Environment Inside the ASTs
ReCAST-R Benefits
-
Protects vapor-exposed surfaces, including sidewalls and supports.
-
Stops ongoing corrosion in affected tanks.
-
Prevents contamination of stored crude oil in operational tanks.
-
Extends tank service life while reducing maintenance costs.
-
Reduces the rate of corrosion by 4 to 5 times.
-
Increases roof life expectancy from 5-7 years to over 25 years.
Duration of Protection
- ZERUST® ReCAST-R™ significantly slows the corrosion rate - by up to 4 to 5 times compared to untreated conditions.
- This extends typical tank roof life from 5-7 years to 25 years or more, offering long-term reliability and reduced replacement needs.
Product Properties
-
Dispenser type: Steel cylinder
-
Inhibitor form: VCI liquid
-

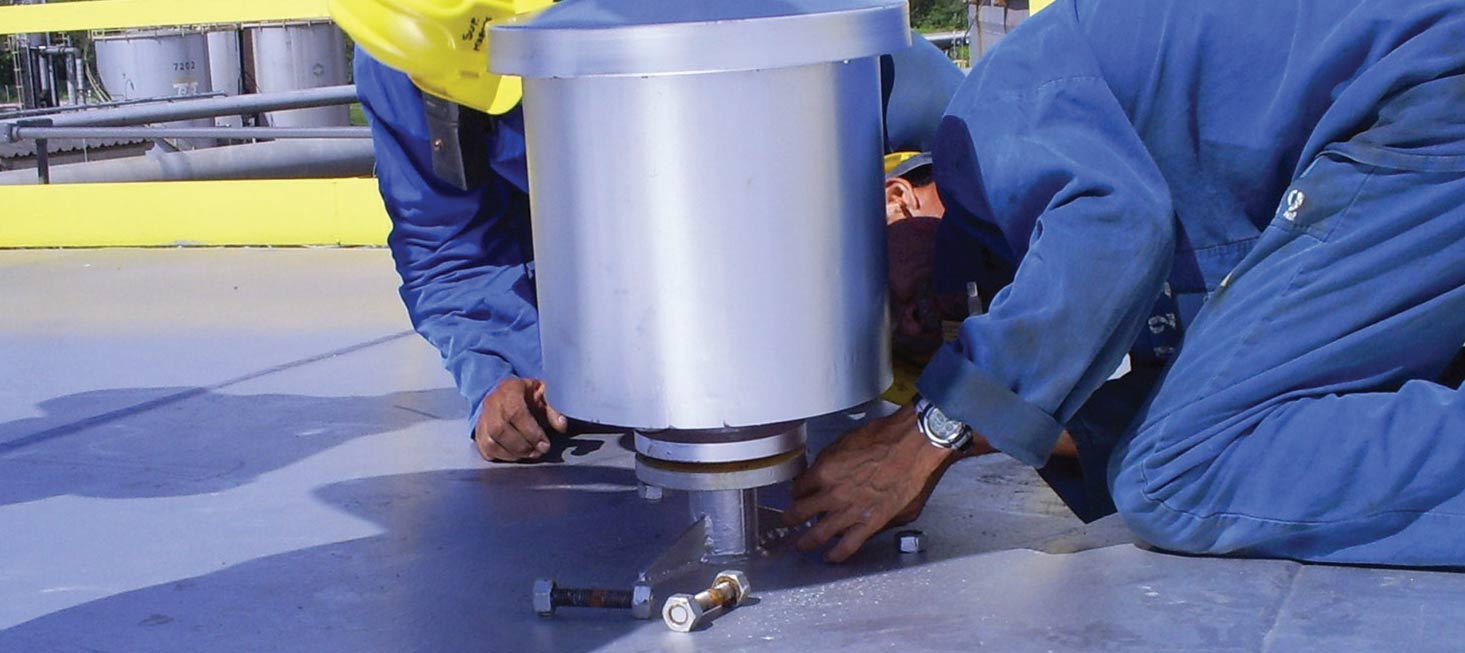

Deployment: Installed on tank roof
AVAILABILITY
-
Contact a ZERUST® representative for ordering information.
