Corrosion Protection for a Single Bottom Storage Tank on Concrete Foundation using ZERUST® Zerion™ FVS-S15 Corrosion Inhibitor Sleeves via Chime Ring IDS
Corrosion Protection for a Single Bottom Storage Tank on Concrete Foundation using ZERUST® Zerion™ FVS-S15 Corrosion Inhibitor Sleeves via Chime Ring IDS
Project Specifics
Installation Dates
March 2025
Location
Florida, USA
Environmental Conditions
Avg. Temp. 80-85°F, high humidity, sunny and partly cloudy conditions
Asset Details
Diameter: 135-ft

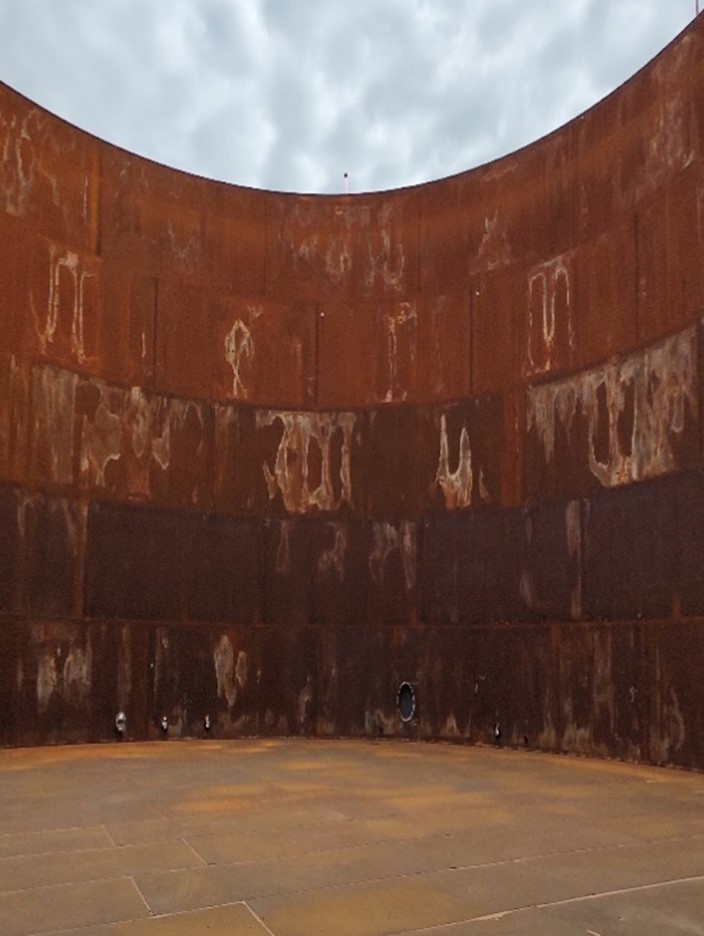

Vessel Construction: Single-Bottom, Solid Concrete Foundation with 12 Evenly Spaced Trenches, Cone Slope, Existing Concrete Ring Wall, No Existing Sealant System
Inhibitor Delivery System (IDS)
Chime Ring IDS (future installation of Dry Tube IDS and ER Probes planned)
Zerust Product(s) Used
ZERUST® Zerion™ FVS-S15 Corrosion Inhibitor Sleeves
Problem

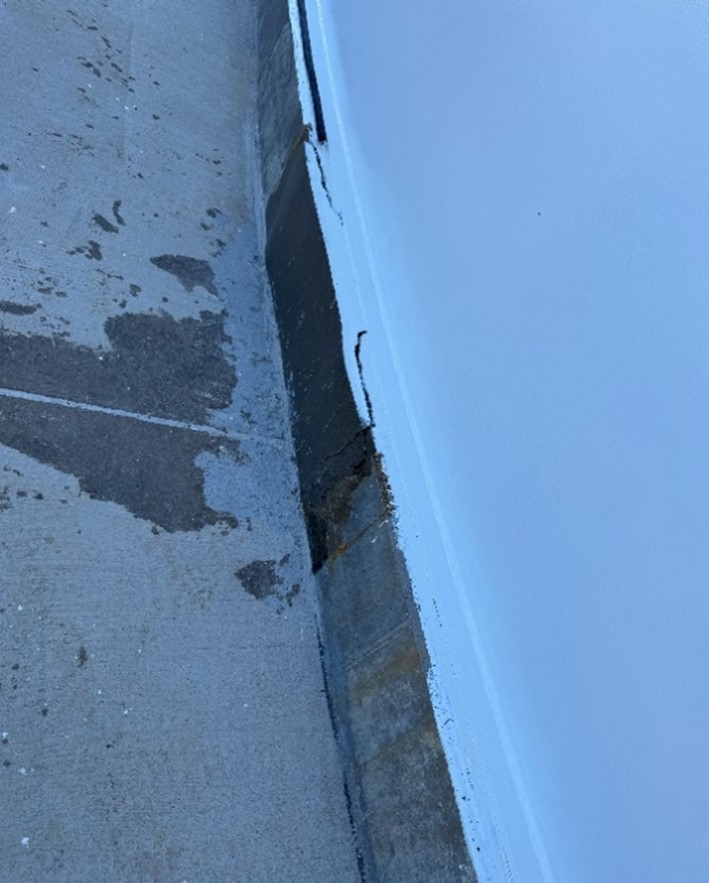

The client required a custom corrosion protection system for a newly constructed, single-bottom tank with no prior chime sealant protection. The goal was to mitigate corrosion risk at the tank chime and foundation interface before integrity testing and long-term operation.
Zerust Solution

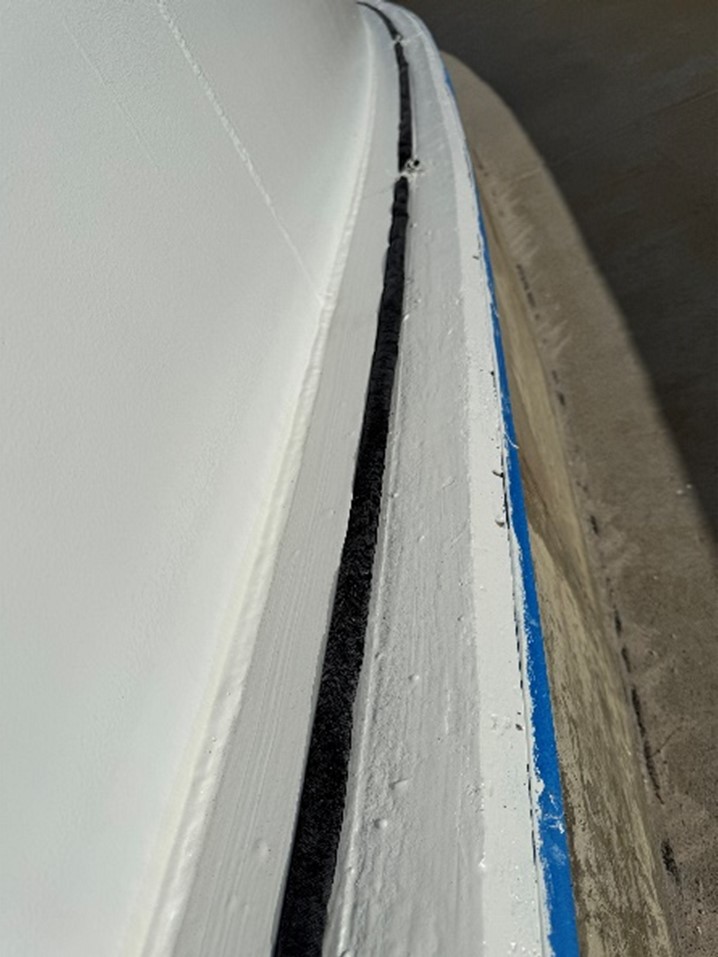

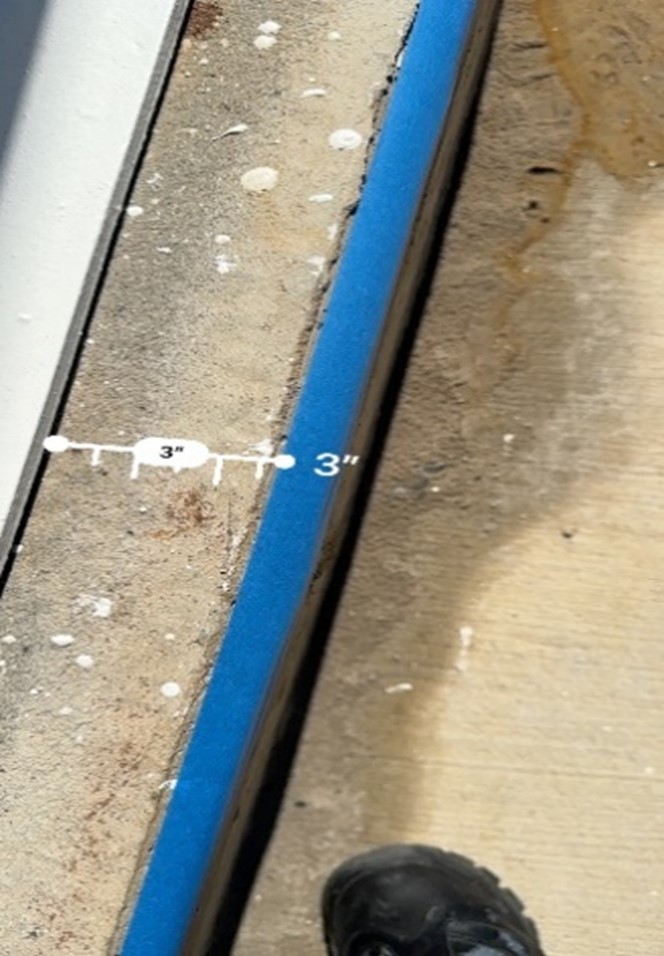

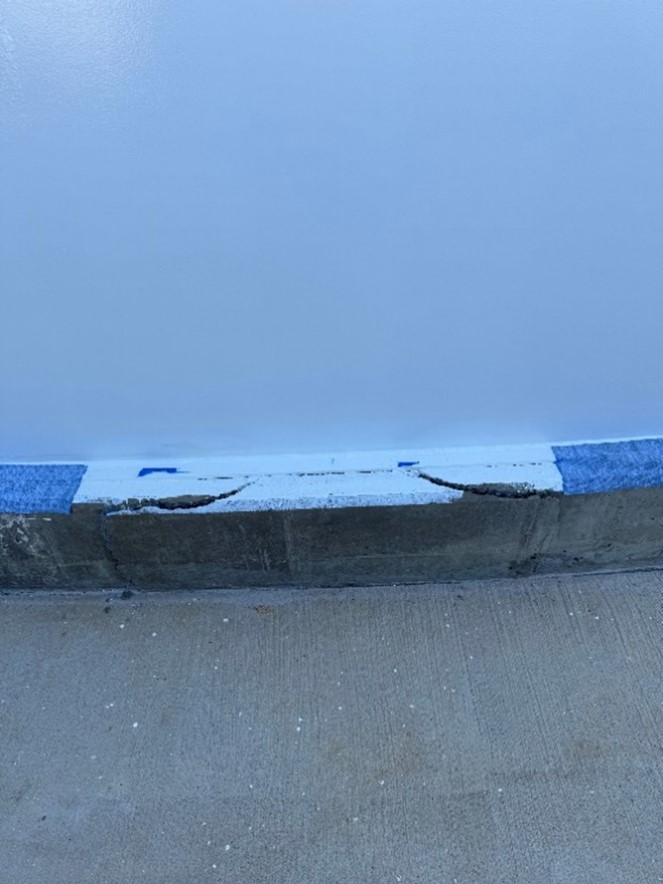

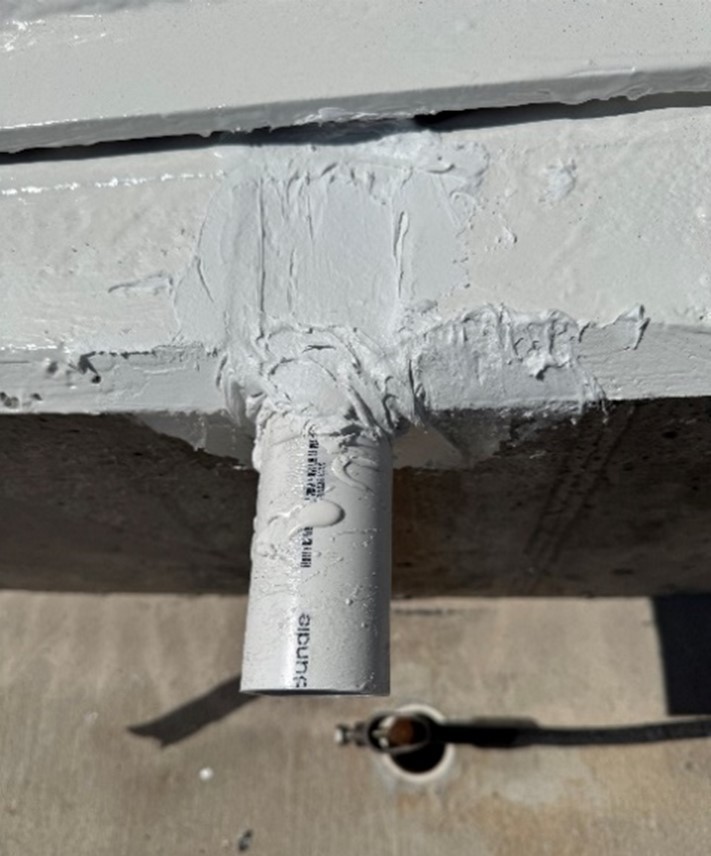

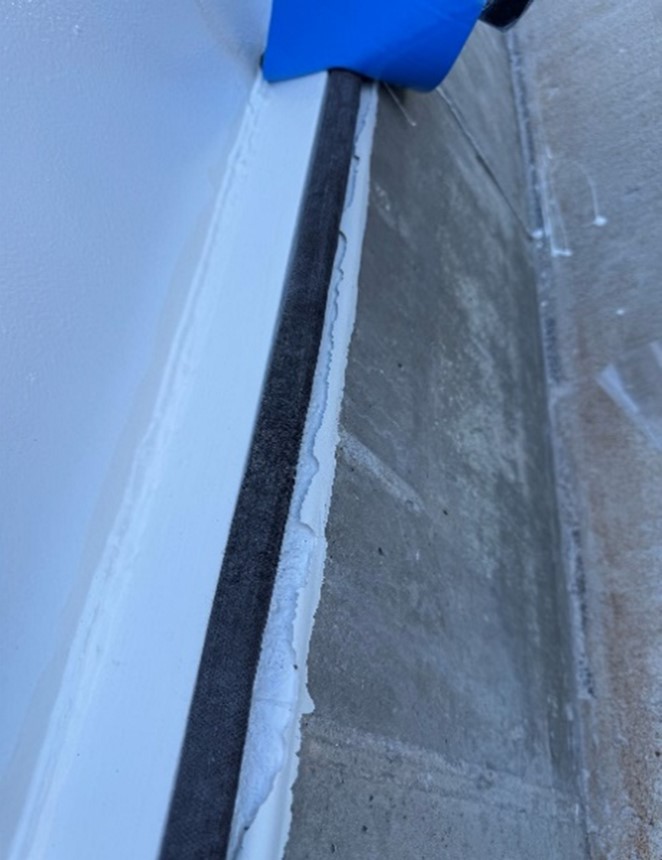

ZERUST® Integrity Solutions installed a Chime Ring IDS system using ZERUST® Zerion™ FVS-S15 Corrosion Inhibitor Sleeves. Field engineers placed 82 sleeves around the tank chime, sealed them with Viscotaq EZ Wrap, and applied two layers of Uniflex 44-300 for long-term corrosion protection. PVC ports were installed into the concrete ring wall to allow for future Dry Tube IDS and ER Probe installations. All work was completed successfully with minimal issues.
Conclusion
The Chime Ring IDS and PVC pipe infrastructure installation were successfully completed. Zerust® will return to complete the Dry Tube IDS system and ER Probe installation after ongoing site repairs are finished. To maintain corrosion protection and support asset longevity, monthly ER Probe monitoring is recommended once installed.
For More Information
Contact a ZERUST® Integrity Solutions representative regarding any questions about this report or corrosion protection services.
